    Ferrari Tractors

    Cobram 60 RS ROPS

      Loading...

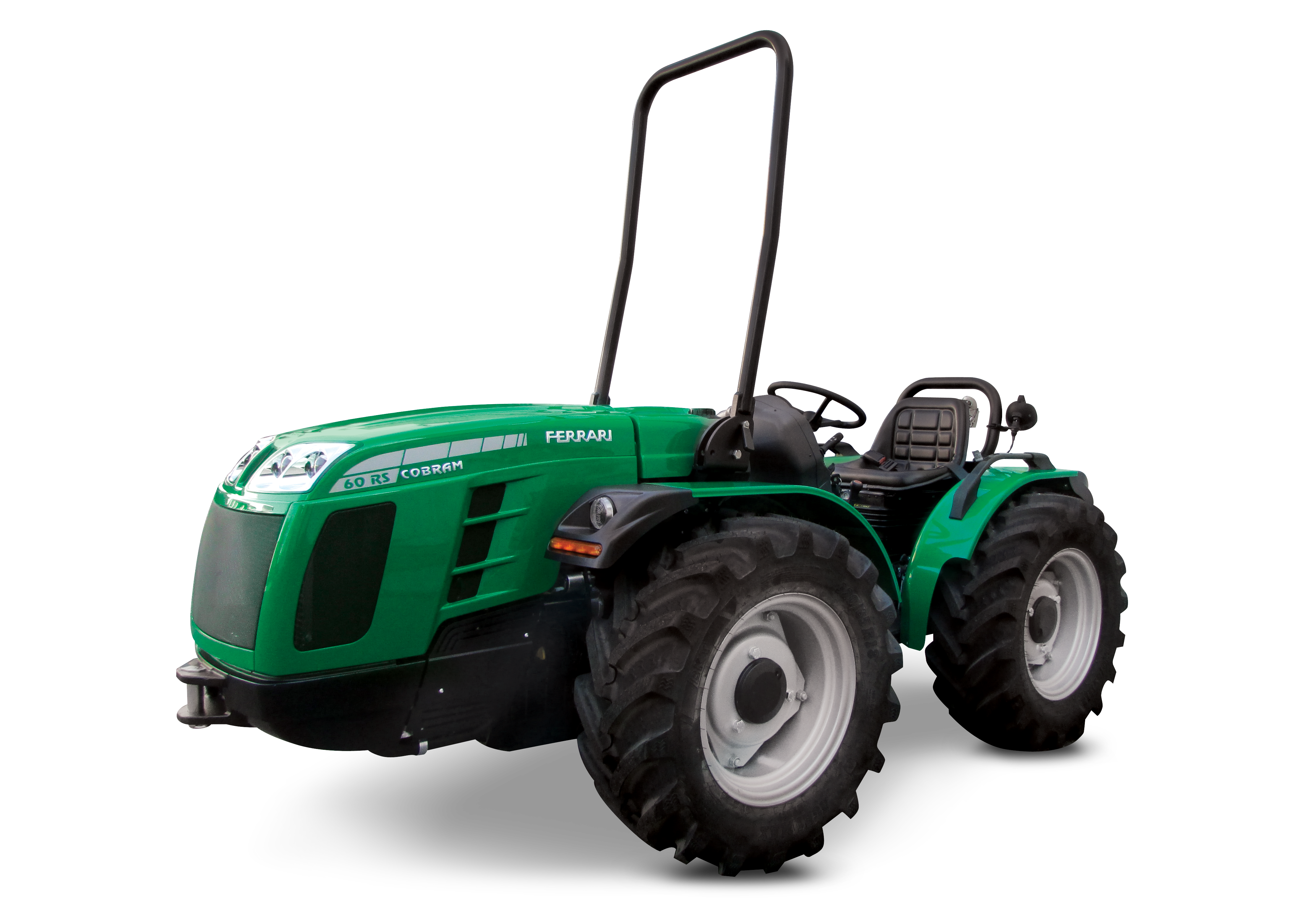

    Cobram 60 RS ROPS

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE FERRARI COBRAM 60 RS ROPS TRACTOR

    ENGINE

    Ferrari Cobram 60 Engine

    • KOHLER KDi2504M, 4-cylinder diesel engine with direct injection is naturally aspirated
    • Displacement 2482 cc
    • Power 36 kW – 49 Hp at 2600 rpm
    • Maximum torque 170Nm at 1500 rpm
    • Tank capacity 45 Litres
    • Alternator 80 Amps
    • Battery isolator

    DRIVELINE

    Ferrari Cobram 60 Oscillating Frame

    • Oscillating-Frame chassis optimises traction, stability and control, in steep and uneven conditions, with the central pivot of the tractor allowing the front axle to oscillate up to 15° relative to the rear axle.
    • Constant 4-wheel drive system with electrohydraulic front and rear diff locks provides the ultimate traction for safety and control in steep and difficult conditions.
    • Weight distribution across the axles, 40% on rear and 60% on front, is further optimised when rear linkage equipment is mounted.

    Ferrari Cobram 60 Planetary Gears

    • 12 forward and 12 reverse speed synchronised gearbox with synchro-shuttle
    • Main clutch in Multidisc in oil bath with electro-hydraulic control
    • Permanent four-wheel drive
    • Front and rear simultaneous differential lock by electro-hydraulic control
    • Front and rear axles with planetary reduction for maximum power and durability

    Ferrari Cobram 60 Service Brakes

    • Service & parking brakes are oil immersed multidisc acting on the rear drive with mechanical control
    • Hydrostatic steering

    PTO, HYDRAULICS & LINKAGE

    Ferrari Cobram 60 PTO

    • Independent 540 rpm PTO with Multidisc clutch in oil bath electro hydraulically engaged
    • Dual independent hydraulic pumps with separate steering and service circuit and hydraulic remotes circuit
    • Flow rate to the linkage and remotes 25.6 Litres/min

    Ferrari Cobram 60 Rear Hydraulics

    • Flow rate to the steering and transmission 15.3 Litres/min
    • Maximum hydraulic pressure 180 Bar
    • 3 double acting rear remotes with free flow return to tank
    • Category 1 3-Point linkage with mechanical raise lower control

    Ferrari Cobram 60 Standard Coupling

    • Linkage arms with ball ends
    • Linkage drop rate control
    • Lift capacity of 1200 kg with external lift rams
    • EC Tow Hitch and front tow hook
    • Rear trailer plug

    OPERATOR AREA

    Ferrari Cobram 60 Reversible Seat

    • Reversible driving platform with rotating base and duplicated floor pedals for improved visibility of implements attached to the linkage and optimises load carrying capacity and traction
    • Adjustable Steering wheel
    • Seat with adjustable spring suspension

    Ferrari Cobram 60 Operator Area

    • Central folding ROPS
    • Digital type console with display of engine rpm, PTO and forward speed, coolant thermometer, fuel gauge and alarms
    • Flashing beacon
    • 31x15.50-15 STG Terra-tyres with fixed rim

    OPTIONS

    Ferrari Cobram 60 Front Ballast

    • Front ballast
    • Wheel ballast
    • Linkage arms with hook ends

    SPECIFICATIONS

    COBRAM 60 RS ROPS
    Engine Type Deutz Kohler
    Number of Cylinders 4
    Engine Power (hp/kW) 49/36
    Engine Torque (Nm) 170
    Transmission Type Synchro
    Number of speeds 12
    Maximum Speed (km/h) 32
    PTO Speed (rpm) 540
    3-point Linkage Lift Capacity (kg) 1200
    Number of Hydraulic Remotes 3 sets
    Central folding ROPS Tick
    Reversible driving platform with rotating base Tick
    Weight - Tractor Only (kg) 1550

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the manufacturer's website (BCS Group-Ferrari)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
